Gear Shaft Heat Treatment: Heat treatment of gear shafts is crucial for enhancing their strength, wear resistance, and fatigue life. The right heat treatment process ensures durability under high loads and reduces friction-related failures.
1. Common Heat Treatment Processes for Gear Shafts

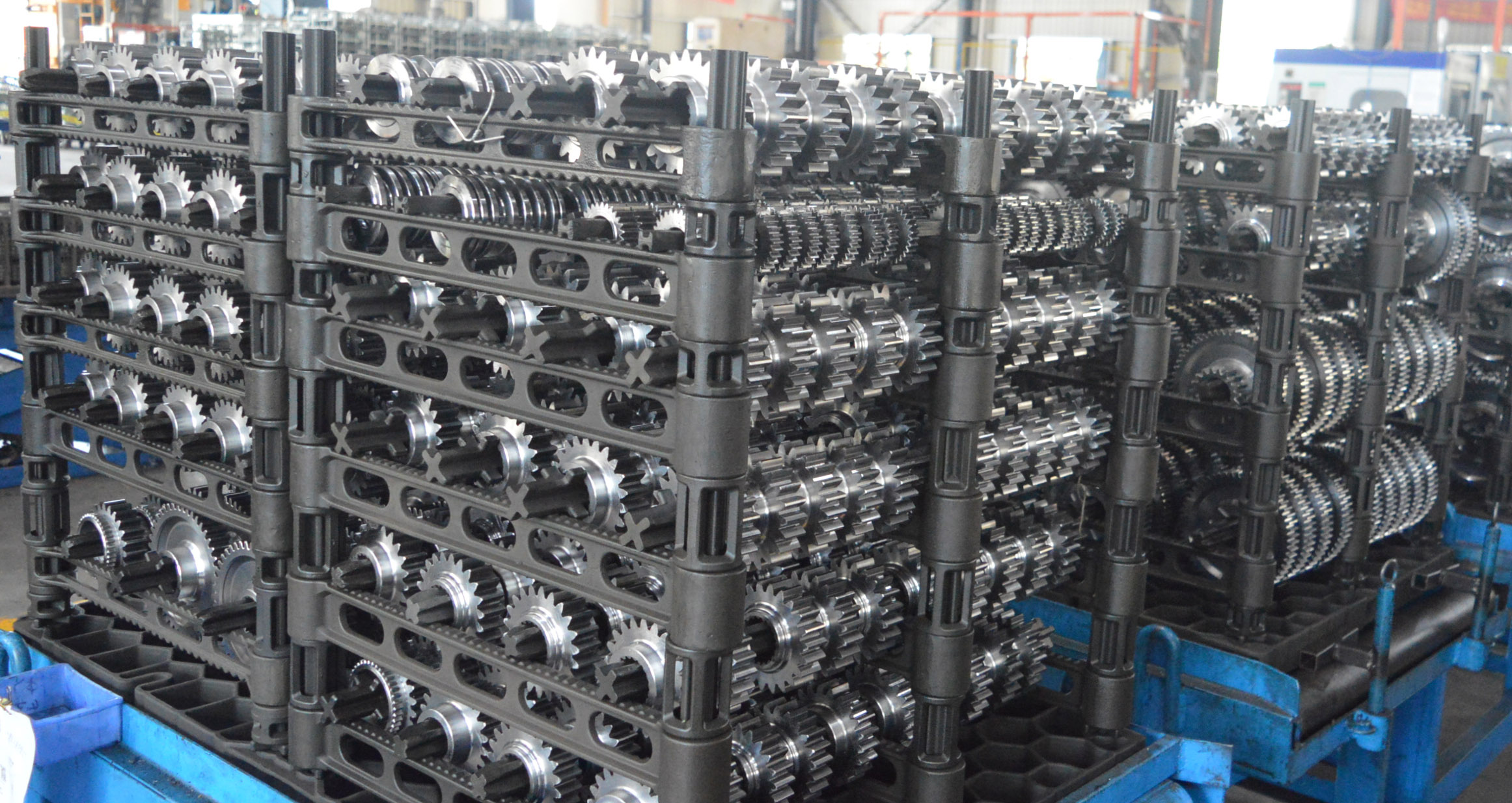

A. Case Hardening (Carburizing or Carbonitriding)

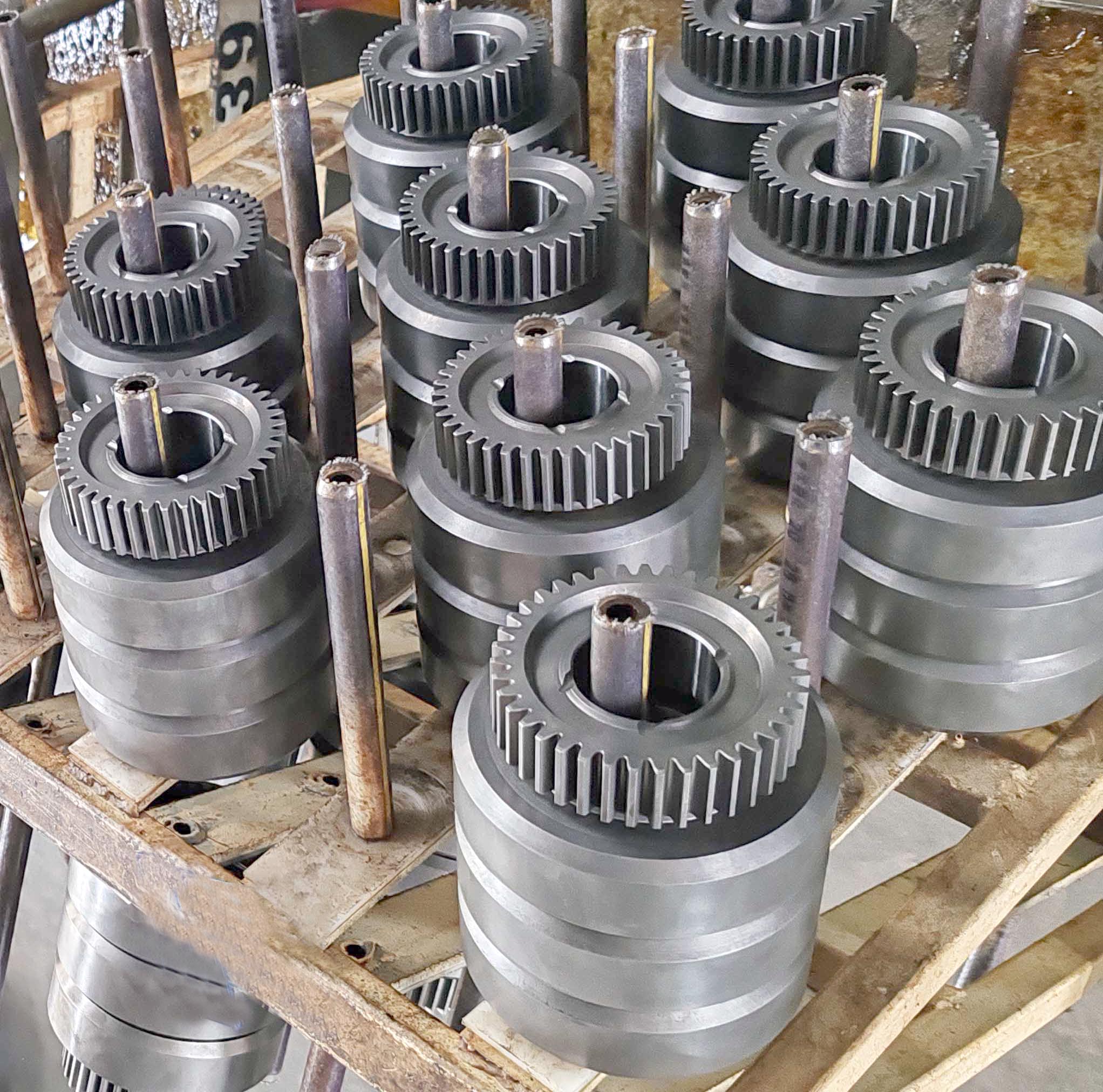

Carburizing: Diffusing carbon into surface at 900–950°C, then quenching.  Depth of carburization: 0.5-0.8mm

shaft gear surface hardness: HRC56-60    Carbonitriding: Adds nitrogen for better wear resistance.

Material: Low-carbon steels (e.g., AISI 8620, 20CrMnTi, 20MnCr5).  Hard surface (HRC 58–64) with tough core.
Excellent for wear resistance & fatigue strength (e.g., automotive gears).
Limitations: More expensive than through hardening.

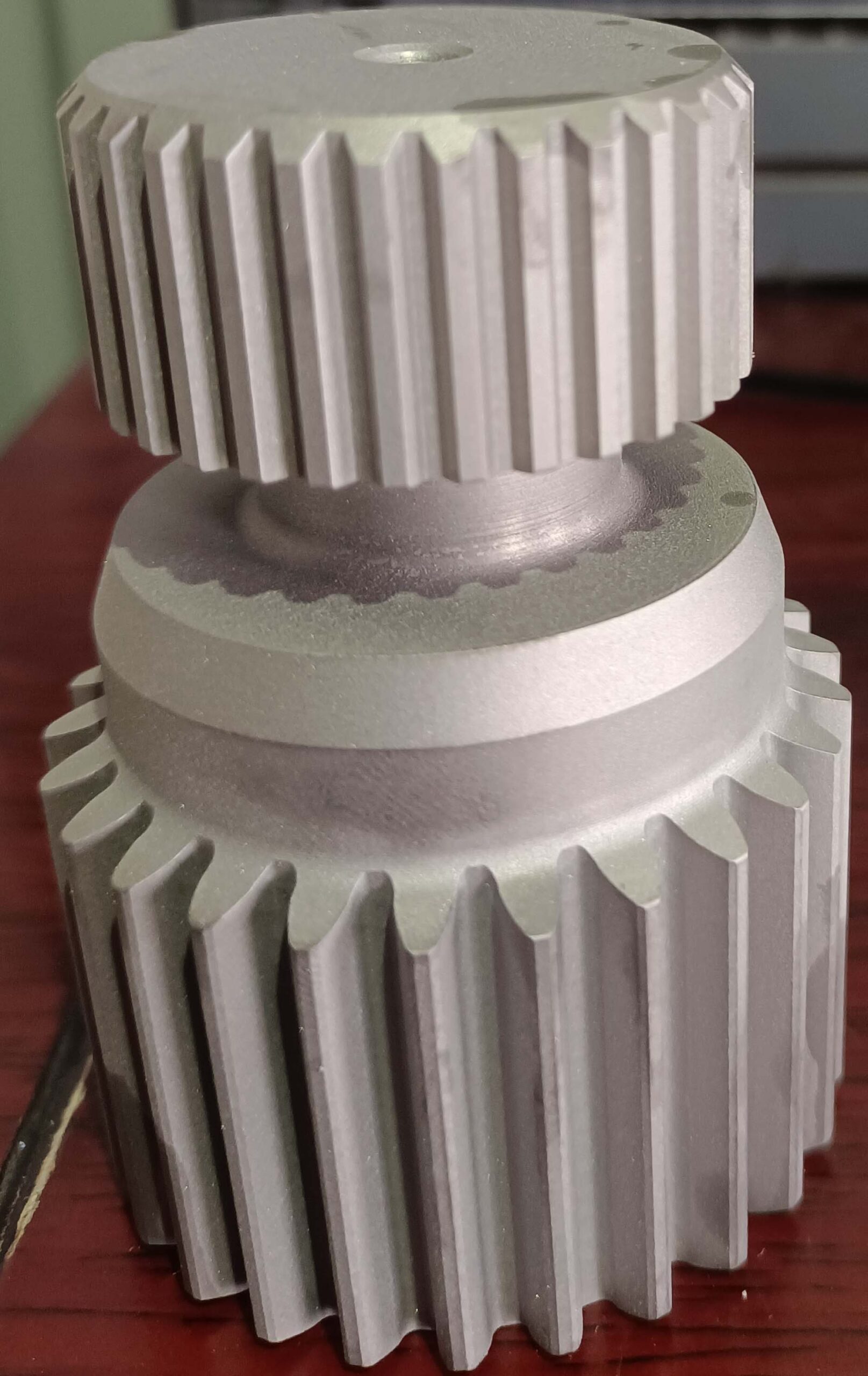

B. Nitriding (Gas or Plasma)
Process: Diffusing nitrogen into surface at 500–550°C (no quenching needed).
Material: Alloy steels (e.g., AISI 4140, Nitralloy 135M). Extreme surface hardness (HRC 60–70).
No distortion (low-temperature process). Best for high-precision gears (e.g., aerospace, turbines).
Limitations: Slow process, not suitable for large batches.

3. Key Considerations for Gear Shaft Heat Treatment
✔ Distortion Control – Use fixturing during quenching to minimize warping.
✔ Residual Stresses – Shot peening can improve fatigue life.
✔ Post-Treatment Machining – Some processes (like nitriding) require final grinding.

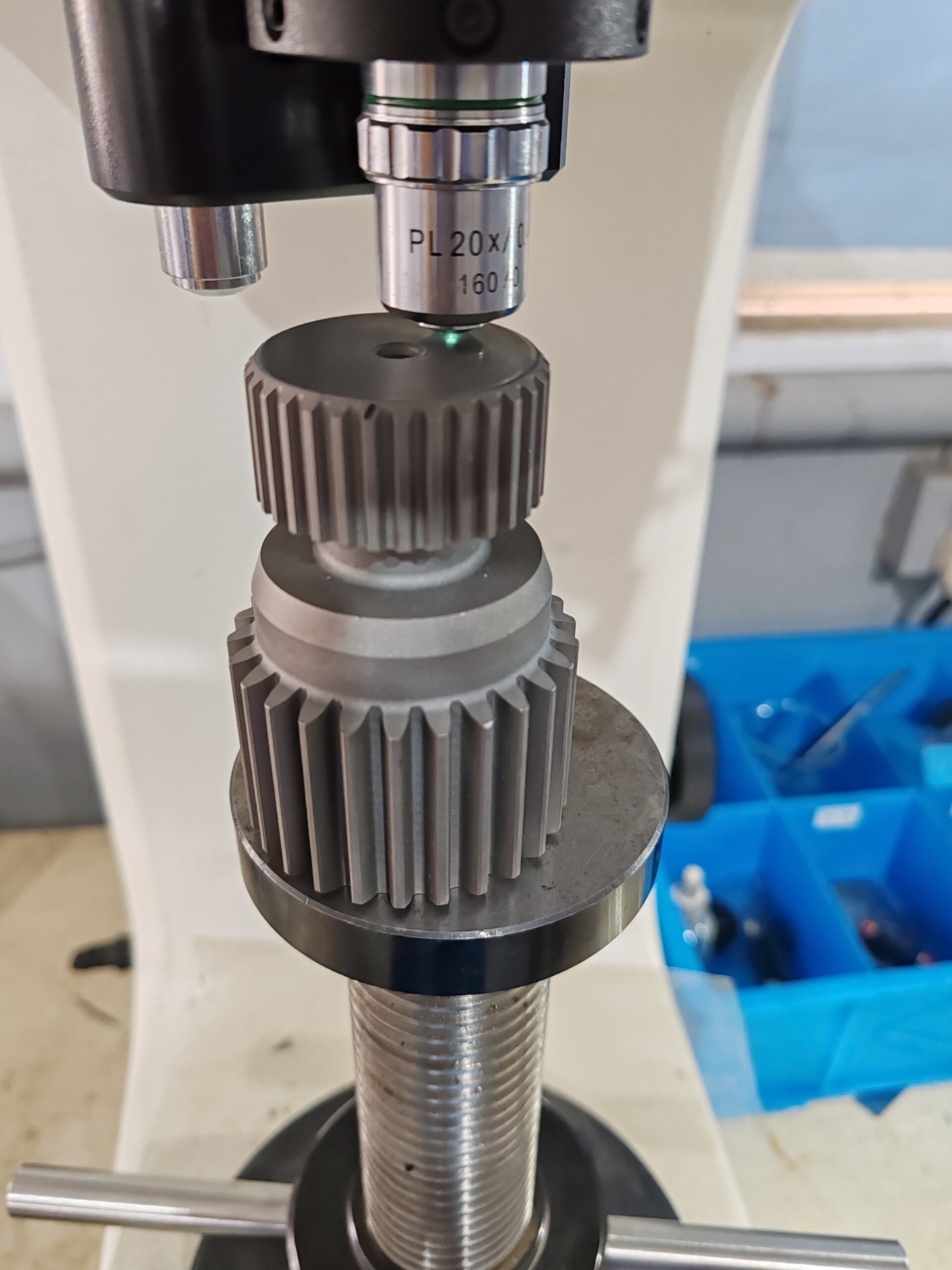

✔ Quality Checks – Hardness testing (Rockwell C), microstructure analysis, and NDT (dye penetrant, ultrasonic)
