we are China sectional valve supply, parker SDV20 SDV35 SDV70 valve factory:

1. • Type: Direct-acting pressure reducing valve

   • Maximum working pressure: 250 bar (3,625.9 psi)

   • Flow rate: 265 l/min (70.01 us gal/min)

   • Temperature range: -40°C to +120°C

   • Features hardened, precision-ground components and compact design

2. SDV Series parker valve Specifications

   • Compact design (35% smaller than similar products)

   • Lightweight (1/3 the weight of similar products)

   • Multiple protection features: electrical limit, mechanical limit, overheating protection, etc.

   • Various speed options available (5-100 seconds)

   • Intelligent control with digital setting and self-diagnosis

     Nominal Flow: Up to 170 LPM (45 GPM)

     Operating Pressure:VA20 Up to 172 Bar (2500 PSI)

     VG20 Up to 241 Bar (3500 PSI)

     347-9175-002 DVA20-A880

     347-9174-004 DVA20-CFA70 Combined Flow Mid Inlet SAE 12 Porting

     347-9174-002 DVA20-SFA70 Split Flow Mid Inlet SAE 12 Porting

     391-1873-001 DVA20-MRV Adjustable Main Relief N/A

     391-1873-002 DV20-MRVP Main Relief Plug N/A

     347-9175-010 DVG20-A880 Inlet SAE 16 Porting

     347-9174-006 DVG20-CFA70 Combined Flow Mid Inlet SAE 12 Porting 347-9174-005 DVG20-SFA70 Split Flow Mid Inlet SAE 12 Porting

     391-1873-128 DVG20-HMRV Adjustable Main Relief N/A

     VG20 High Flow Sectional Valve

     DIRECTIONAL CONTROL VALVES

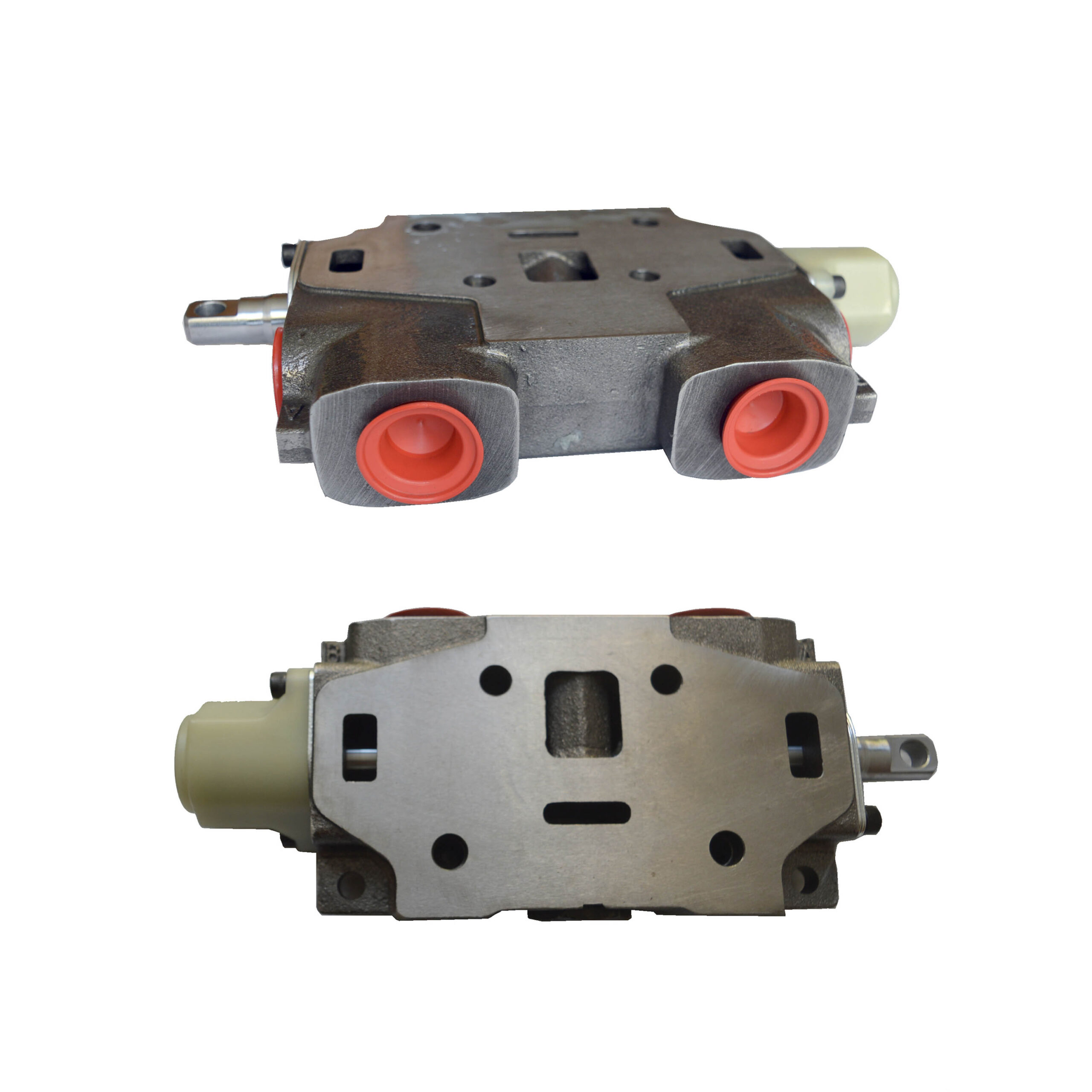

     Single Spool Hydraulic Sectional Control Valve Parker Vg20 Section Valve

     double-acting Sectional Control Valve Parker Manual spring reset VG20 Sectional Valve

     VG20-SA3 single-acting Work Sections 3/4″-14NPT Manual spring reset valve

     parker DVA20-DA7 High Flow Sectional Valve

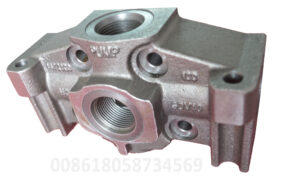

directional control valve é um projeto do tipo segmento que pode ser empilhado em paralelo. É composto por três elementos – an inlet Section valve, work sections with a wide choice of spool configurations and an outlet section, all bolted together as a single unit. The number of work sections in the valve unit are determined by the number of hydraulic elements to be operated. The valves are mounted on equipment at one location to meet the requirements of controlling multiple hydraulic elements from a single point by a single operator.

Simple, compact and heavy duty designed sectional valve having parallel work sections with individual load ports for both open center, closed center and power beyond

applications. Spring center is standard. Detent options available on request. Work port relief valves and anti-cavitation check valves are available. Spool end caps, lever end or protected from dust by bellows inlet and outlet ports with threading options for UNF, BSP, NPTF. Load check valves for all spools to prevent back flow from pump. Work Port Relief valve provision to limit the pressure in each spool section.
