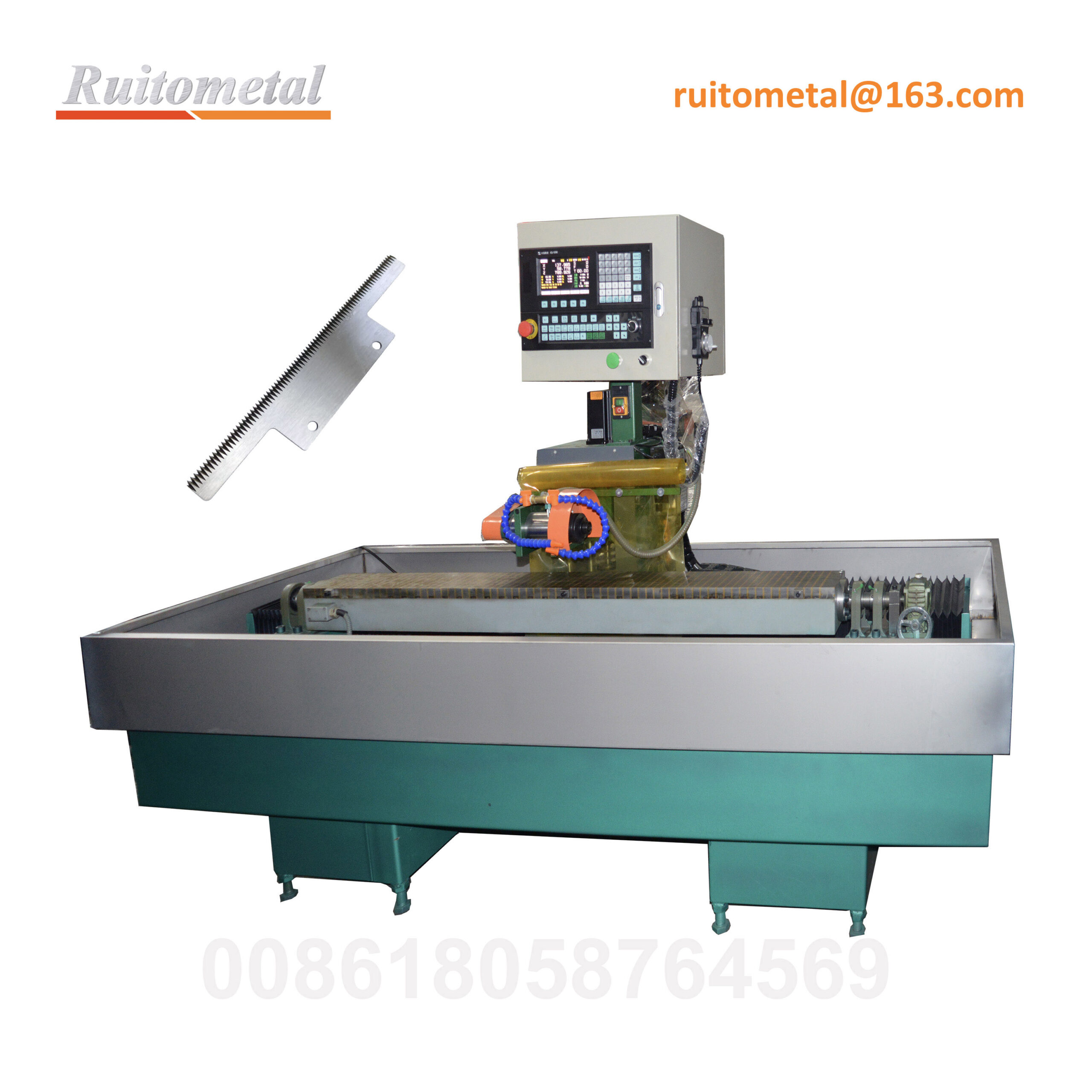

precision serrated knives grinding machine used exclusively for grinding the staright knives teeth.
Straight Knife Grinding Machine is an essential piece of equipment in any workshop or factory that uses industrial straight-blade cutting tools. It restores a sharp, precise, and durable edge, ensuring clean cuts, reducing machine strain, and saving money on knife replacement costs.

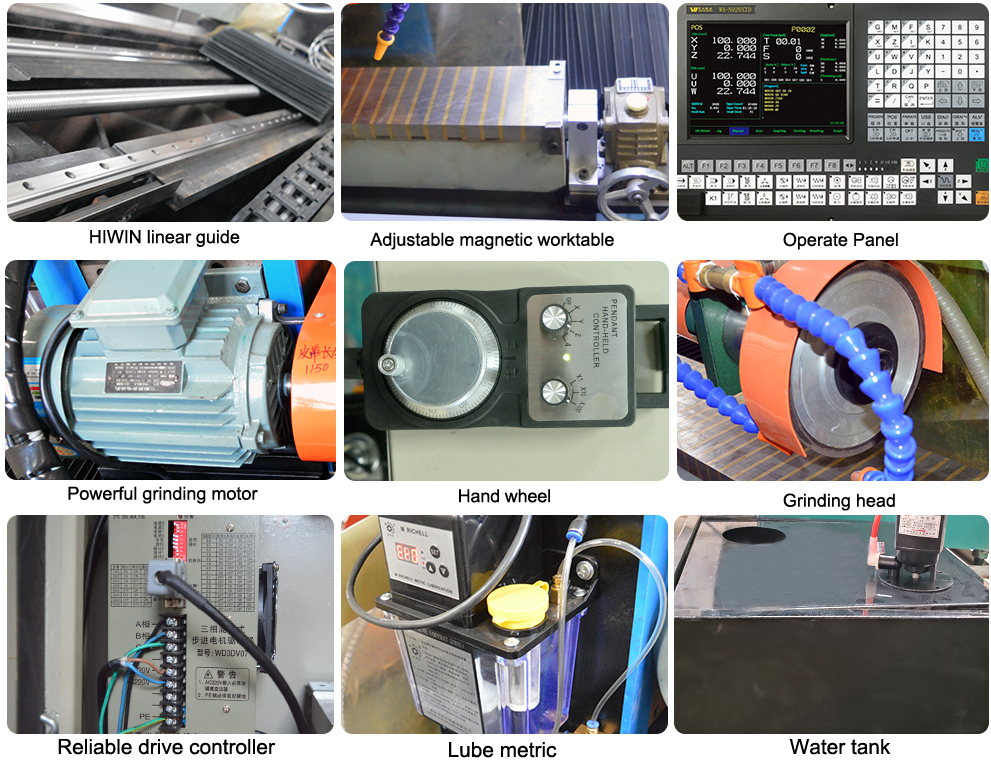

Serrated Knives Grinding Machine Feature:
1.High precision grinding, advanced practical serrated knife grinder;
2.x, y, z three coordinate CNC system; feed knife using high precision ballwire rod and linear guide rail;
3. Special grinding head motor with high strength, sufficient power spindle
4. Angle adjustable Electromagnet table(0-90° ),easy to operate, cangrinding various knife.
5.Teeth space can be set in the program as demand; according thegrinding wheel thickness,teeth space setting 0.5-25mm.
| knives teeth Grinding max length | 1200mm |
| Workbench horizontal travel
( up and down) |
150mm
120mm |
| Grinding head max speed | 3000rpm |
| Grinding head motor power | 380V 50HZ 2.2KW |
| Grinding wheel size | Φ150-250*32*10/20 （CBN） |
| weight | 1200KG/1650KG |
| whole machine size | 2200*1100*2000 |
