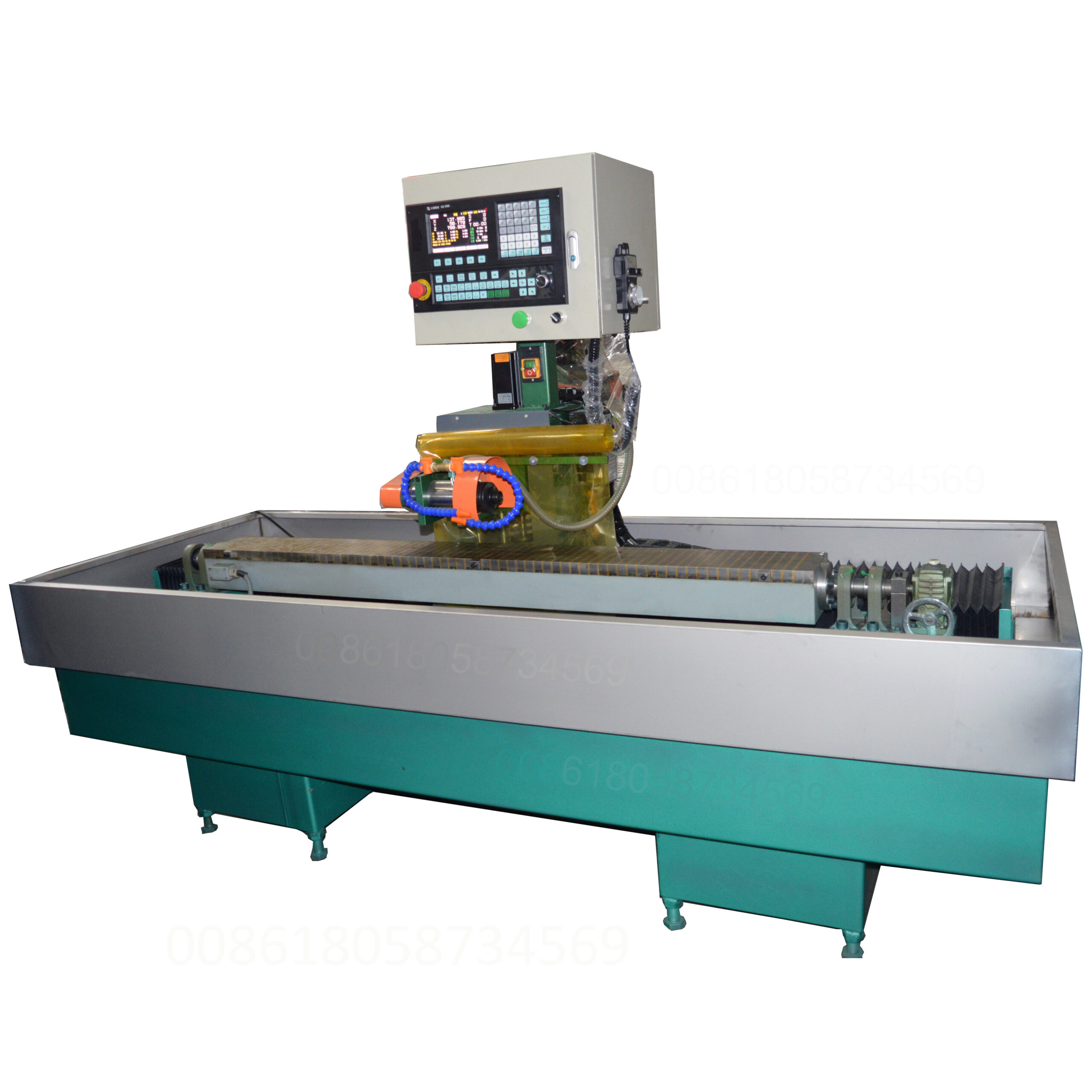

knives grinding Machine Bed: Welded construction design, Precision machined for the highest accuracy.
Guide Ways–Three systems available depending upon model and application:
Hardened and ground way bands ; Bolted on hardened and ground box ways; High precision linear ways covered with stainless steel guards.
grinding knives Tables: Flat fixed table; Electromagnetic rotating table; Twin electromagnetic rotating tables.
Grinding Carriage: Cast iron construction with precision guide rolls, support guiding.
Down Feed System, For grinding tool, ball screw and nut system. Impulse feed, rapid positioning, and digital display. Many options of programmability are available.

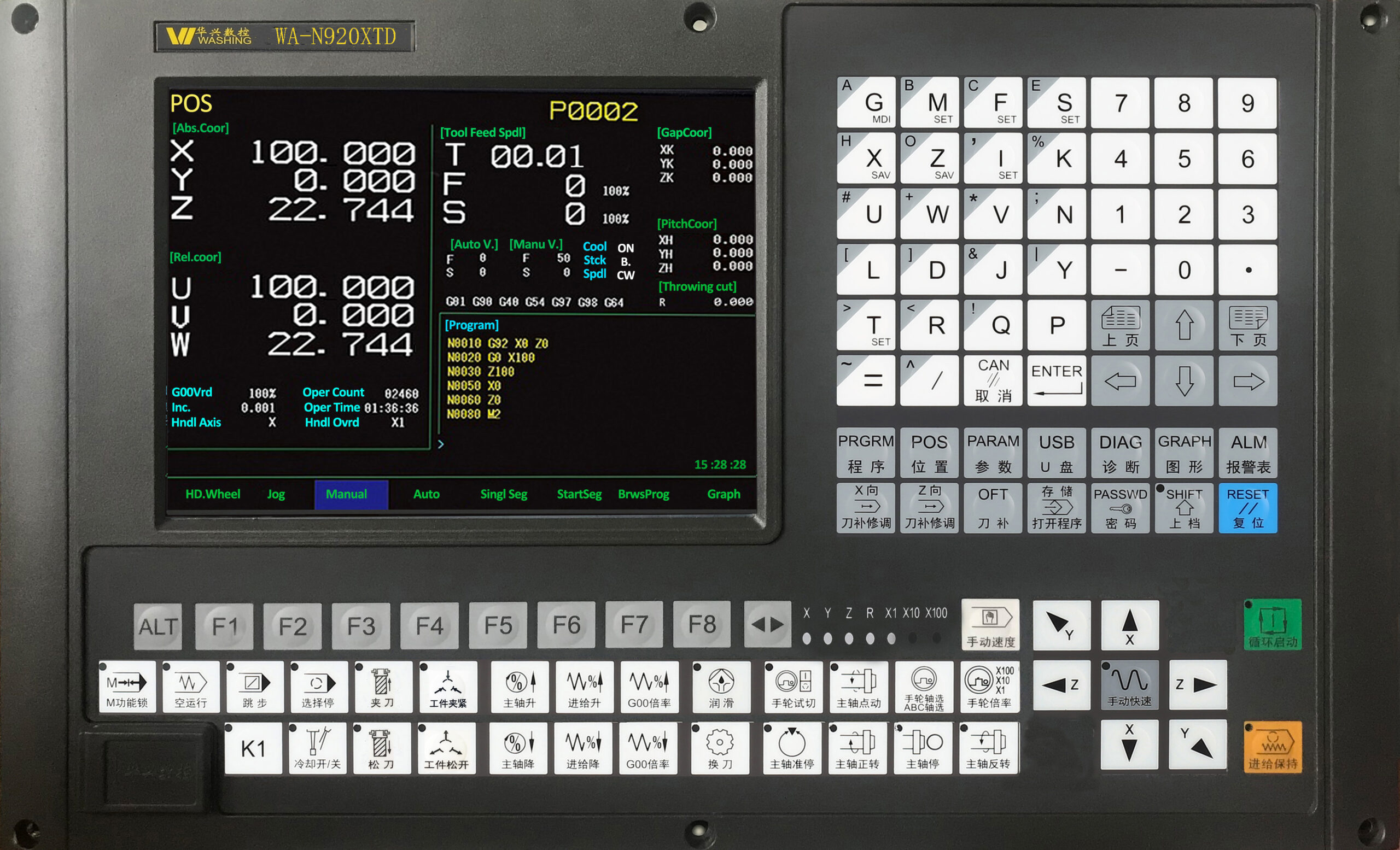

Numerical control system has six major functions:
PRGRM—Program: Various management, program input and output operation related withprogram.
POS—-Position: All movements and strong signal control related with machine tool.PARAM…. Parameter: The control parameters are set according to various machine tools
USB—-USB interface management function.
GRAPH— Figure :Real-time track processing figure.
DlAG—–Diagnoses :Check the status of input signal and output signal

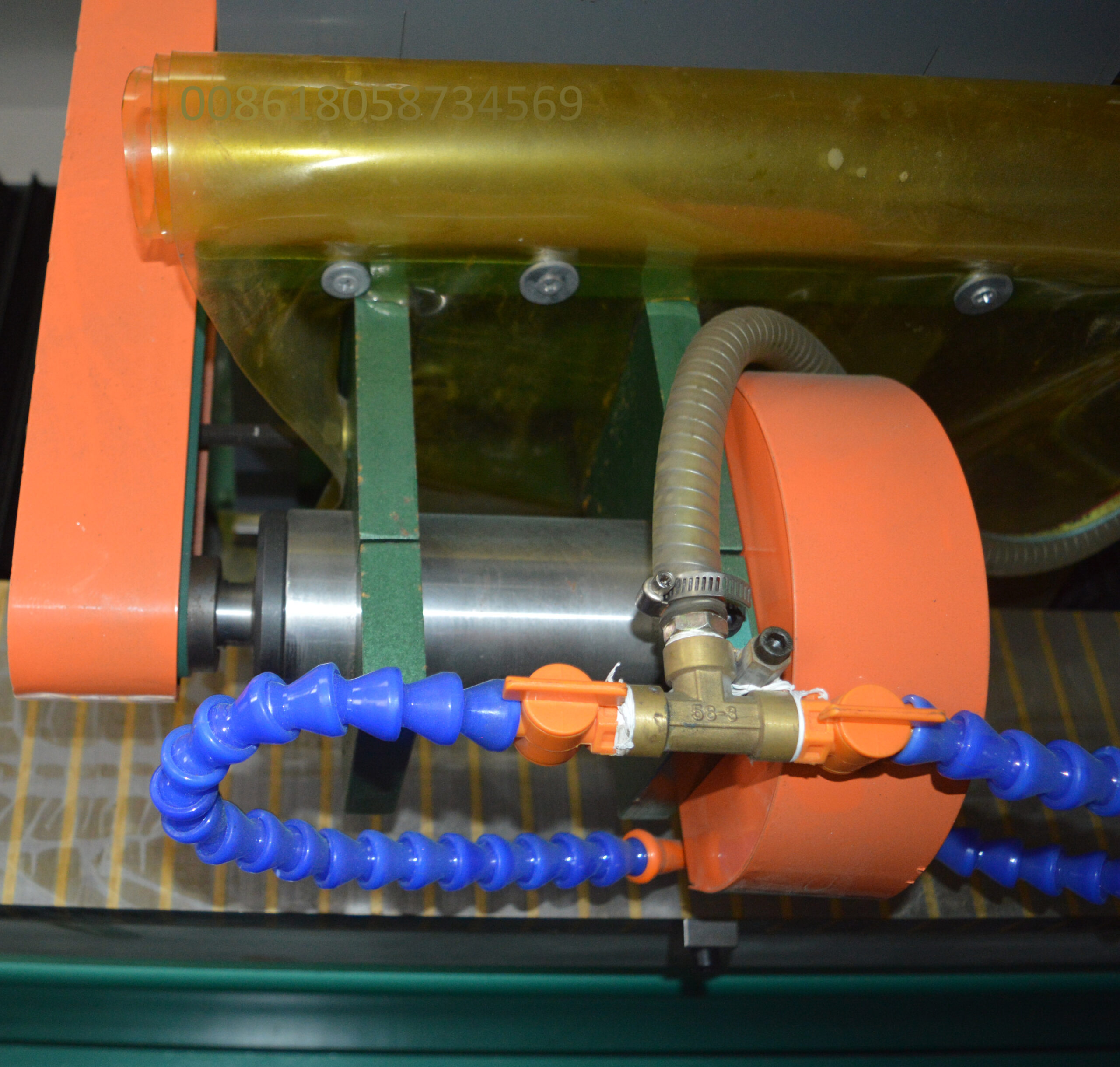

knives Grinding head Motor: Strong hollow shaft for coolant supply and high precision bearings, tiltable for cross and radial grinding.
Grinding Tools
Ring type grinding wheel, segmental head, diamond or CBN grinding wheels. Diameter and size depend upon the model and application.
Cooler System
Large external coolant tank and pumps supply coolant through the hollow motor shaft and from the sides.
Accuracy, Grinding: +/- 0,005 mm/m
Options and Steps of Automation
- Magnetic quickchange device for grinding wheel
- Pendulum and creep feed grinding
- Electrical demag control for work-table
- NC and CNC controls
- Steplessly variable grinding motor
- Multiple chuck or two work station arrangements
- Automatic sizing unit with wheel wear compensation
- Grinding vapor extraction and enclosures
- Programable controls for automatic grinding cycles
- Special fixturing, handling systems and robotic automation
