VG20 outlet valve, VG20-A880 Inlet Cover SAE 16 Porting Directional Control Valve
The VG20 Parker Outlet Valve is a component commonly used in hydraulic systems, particularly in applications requiring precise control of fluid flow. Parker is a well-known manufacturer of hydraulic and pneumatic components, and their VG series valves are designed for high performance and reliability.
Tank return power beyond power beyond porting
directional control valve is a segment type design that can be stacked together in parallel. It consists of three elements – an inlet Section, work sections with a wide choice of spool.
| VG20(SDV40) outlet valve | |||||
| No. | Name | Parker model | CODE | Cast part No. | Remark |
| 7 | SDV40-TTR88 | 347-9176-007 | 447-0176-007 | 447-1800-500 | 2portSAE16 |
| 8 | SDV40-TTR90 | 347-9176-024 | 447-0176-024 | 447-1800-500 | 回油2 1 3/16 |

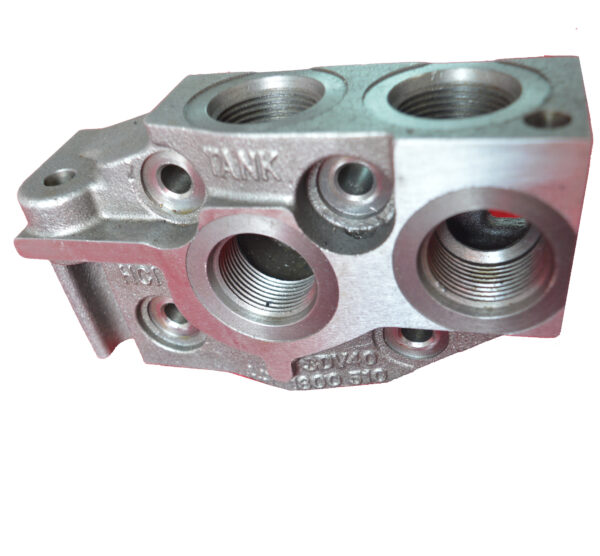

| 9 | SDV40-TPB78 | 347-9176-XX | 447-0176-XX | 447-1800-510 | 出port2-SAE16 |
| 10 | SDV40-TPB88 | 347-9176-008 | 447-0176-008 | 447-1800-510 | 回油2-SAE12 油,口泥芯减小 |
parker VG20 sectional valve pecifications
Nominal Flow: Up to 170 LPM (45 GPM)
Operating Pressure:VA20 Up to 172 Bar (2500 PSI)
VG20 Up to 241 Bar (3500 PSI)
347-9175-002 DVA20-A880
347-9174-004 DVA20-CFA70 Combined Flow Mid Inlet SAE 12 Porting
347-9174-002 DVA20-SFA70 Split Flow Mid Inlet SAE 12 Porting
391-1873-001 DVA20-MRV Adjustable Main Relief N/A
391-1873-002 DV20-MRVP Main Relief Plug N/A
347-9175-010 DVG20-A880 Inlet SAE 16 Porting
347-9174-006 DVG20-CFA70 Combined Flow Mid Inlet SAE 12 Porting 347-9174-005 DVG20-SFA70 Split Flow Mid Inlet SAE 12 Porting
391-1873-128 DVG20-HMRV Adjustable Main Relief N/A
- Function: Inlet valves regulate the entry of air, fuel, or other fluids into a system. In engines, they allow the air-fuel mixture to enter the combustion chamber during the intake stroke 46.
- Materials: High-quality materials like chrome-silicon-steel are often used for durability and resistance to wear 8.
- Dimensions: Inlet valves come in various sizes, such as valve head diameters (e.g., 36 mm) and overall lengths (e.g., 105 mm), tailored to specific applications 78.
- Compatibility: These valves are designed for specific vehicles or systems, such as those from Volvo, Mercedes-Benz, Audi, and VW 78.
