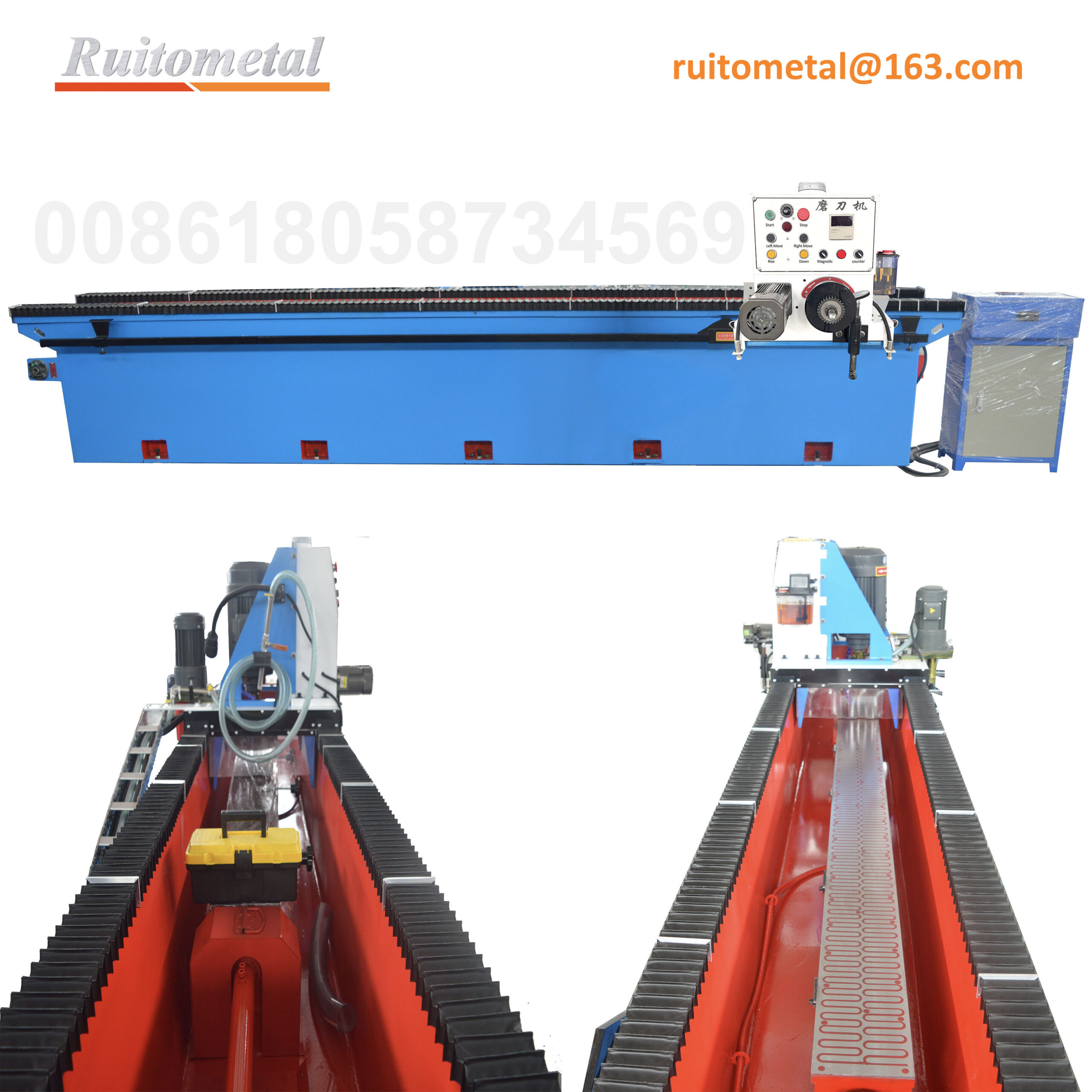

crusher blade knives grinding machine parameter:
| Maximum grinding length | 3000 mm | Tamaño de la rueda de molienda | Φ200*125*32 |
| Grinding head speed | 1440 rpm | Feed method(1-10mm) | manual & automactic |
| Grinding head motor | 4.0KWPure copper | Drive method | gear rack frequency control |
| Electromagnetic chuck size | 1500*150*2 | Grinding head timing | travel time adjustable |
| Grinding head travel motor | 0.75KW | Electrical control box | seperate |
| Water pump motor | 90W | Guide rail material | 25 linear guide rall |
| Grinding head lift motor | 300W | Material of machine | 10 mm welding Q235 metal plate |
| Grinding angle | 0-360° | Total weight | 1500Kg |
| Grinding head travel speed | 25-55m/min adjustable | Tamaño de la máquina | 4500*1100*1250 |
crusher máquina de molienda characteristics
1. máquina de molienda knives grinding machineworking table is of electromagnetic chunk with strong magnetic power and lower consumption.
2.The spindle motor is professionally made for grinding knife, with highprecision and easy maintenance.
3.The machine chooses rack driving, so the grinding head traveling more smoother.
4. The movement of the grinding head is controlled by the inverter. speed can be fitted for both accurate grinding and rough grinding.
5.high quality linear guide . moving smoothness and long life.
